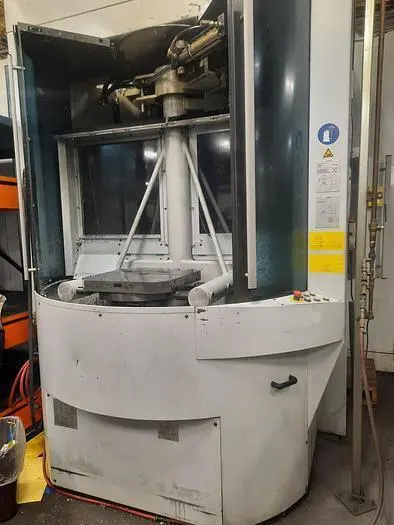

2008 DIXI DHP50-4X CNC
Horizontal Machining CentersGreat condition, was replaced by a new machine and was making good parts the day it was taken out of service. Reported to be holding 2 tenths. Low hours on this beautiful machine. Only 11500 cutting hours.
Comes with a lot of new spare parts including a spindle and ball screws.
To the best of our knowledge all details listed below are deemed correct. It is the buyers responsibility to confirm ALL details prior to purchase.
Financing Available
X-Axis | 27.559" | 700 mm |
Y-Axis | 27.559" | 700 mm |
Z-Axis | 27.559" | 700 mm |
Power | 33.5 hp | 25 kW |
RPM | 12,000 RPM | 12,000 RPM |
# ATC | 60 | 60 |
Taper | SK 50 Big Plus (Face Mill) | SK 50 Big Plus (Face Mill) |
Pallet-W | 19.685" | 500 mm |
Pallet-L | 19.685" | 500 mm |
# Axis | 5 | 5 |
Manufacturer DIXI
Model DHP50-4X
Year 2008
Condition Used
X Travel 700mm - 27.6in
Y Travel 700mm - 27.6in
Z Travel 700mm - 27.6in
B Axis 360 degrees
Pallet Size 500x500mm - 19.69x19.69in
Work Envelope 700dia x 800mm h. - 27.6 dia x 31.5in h
Load on Table - Pallet 500kg - 1102lbs
Spindle Taper HSK A 63
Max Spindle Speed 12000 RPM
Spindle HP or kW 25 kW
Power 180 kva
Voltage 460 3 phase
Control Fanuc 16i-MB
ATC 220
