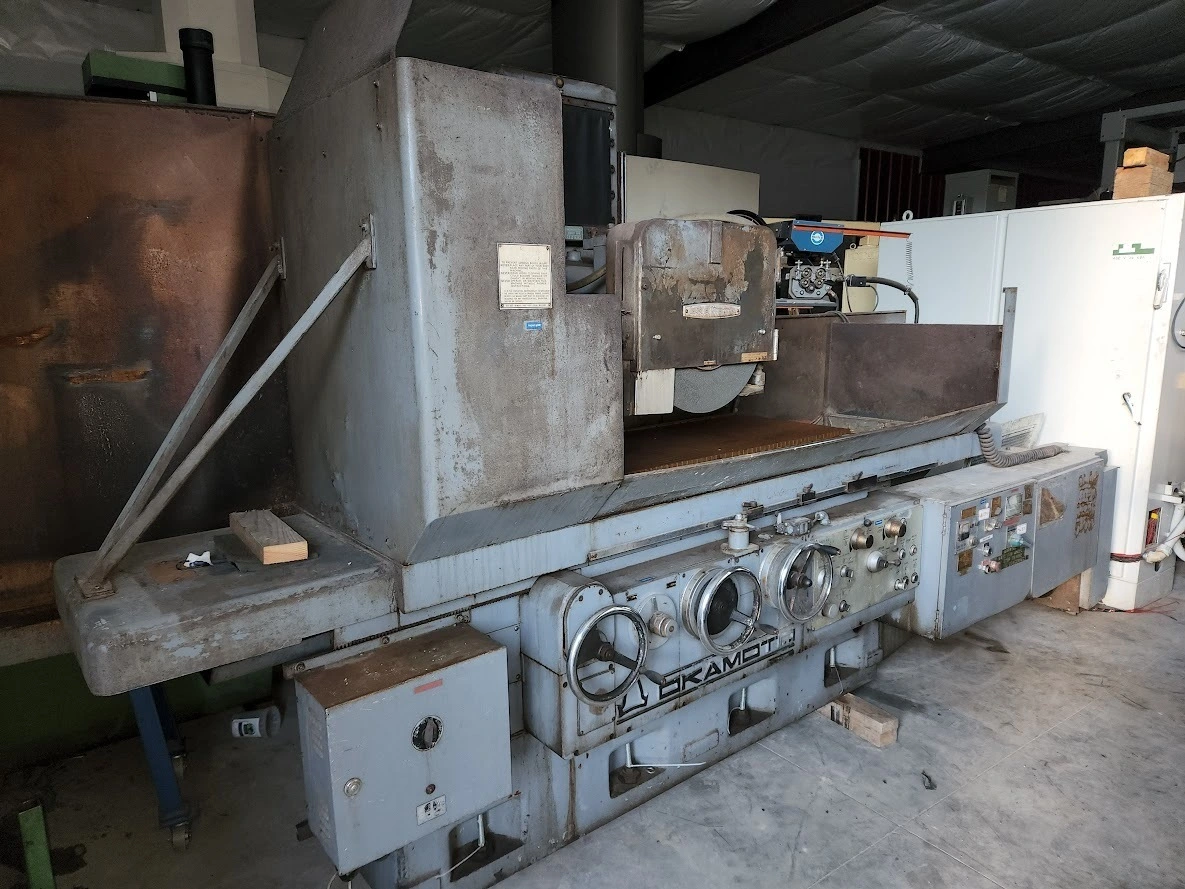

OKAMOTO PSG-125 20"x48" SURFACE GRINDER
Have one to sell?
ConditionUsed
1 available
20" x 48", OKAMOTO PSG-125, AUTOMATIC.
In storage-not under power.
Manufacturer: Okamoto
Model: PSG-125 20" x 48" Automatic Hydraulic Surface Grinder.
Contact us for price.
Located at our warehouse in Preston, Idaho.
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
Currently Equipped: 18" x 40" Electro-Magnetic Chuck
Capable Grinding Length: 47.24"
Capable Grinding Width: 20"
Distance Under 20" Wheel to Table Top: 23.4"
Longitudinal Travel of Table: 51.22"
Cross Travel of Column: 20.86"
Table T-Slot (No. x Width): 3 x 0.669"
Longitudinal Feeds, FPM: 1-100 FPM
Hand Feed Per Revolution: .984"
Cross Feeds, Intermittent: .20-1.37"
Cross Feeds, Continuous FPM: 1-16.4 FPM
Hand Feed Per Revolution: .2"
Graduation of Handwheel: .001"
Vertical Head Feeds Automatic Feed Per Table Stroke: .0002"-.002"
Auto Feed Per Column Reversal: .0002"-.002"
Graduation of Handwheel: .0002"
Hand Feed Per Revolution: .04"
Vertical Rapid Feed: 12"
Grinding Wheel Diameter: 20"
Width: 2"
Bore: 5"
Spindle Revolution: 1,100 Rpm
Spindle Motor: 10 HP
Hydraulic Pump Motor: 5 HP
Vertical Rapid Feed Motor: 1/2 HP
Floor Space: 150" x 109"
Approx. Weight: 13,200 lbs.
Electrics: 3 Phase, 220-440 Volt
18" X 45" Electro Magnetic Grinding Chuck
Walker Electro Magnetic Chuck Control
Coolant System
