2007 MORI SEIKI NT4300/1500S CNC LATHE
Sold

2007 MORI SEIKI NT4300/1500S CNC LATHE

CNC Lathes
Manufacturer:
MORI SEIKI
Model:
NT4300/1500S
Condition:
Good
Year:
2007
Stock #:
LAD
Serial #:
NT430GD0060
Country:
United States

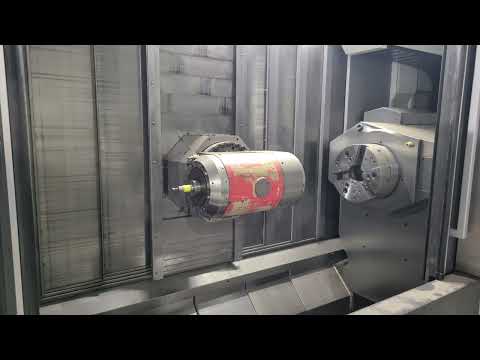

This machine is in excellent condition and has been well-maintained throughout its life. The tool changer has been recently upgraded to a much larger capacity tool changer, which now holds up to 240 tools. The machine has been in operation for a total of 41,094 hours and is still fully functional. It can be seen under power and is ready to be put to work. Don't miss out on this great opportunity to add this reliable and efficient CNC lathe to your shop. Located at our warehouse in Preston, Idaho. We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers. Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge. Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
Swing28.7"728.98 mm
Chuck Size1,212"30,785 mm
Bar Capacity3.53"89.662 mm
Power220 hp164.1 kW
Turning Dia28.715"729.36 mm
Live ToolingYesYes
Dimensions21'L x 10' W x 9'H21'L x 10' W x 9'H
Weight62,250 lbs62,250 lbs

2007 DMG MORI NT4300 DCG 1500S
Swing Over Bed- 28.7"
Turning Diameter- 28.7"/15.7"
Turning Length- 58.9"
Distance Between Spindles- 73.3"
Chuck Size 1, 2-     12"/12"
Spindle Nose 1, 2-   A2-8, A2-8
Spindle Bore Diameter 1, 2-   4.1", 4.1"
Bar Capacity 1, 2-   3.5", 3.5"
Spindle Speeds 1, 2-   2500, 2500 RPM
Spindle Horsepower 1, 2-   40, 40 HP
B-Axis Head Indexing- .0001 Degree
B-Axis Milling Spindle Speed- 12,000 RPM
B-Axis Milling Spindle Taper-  Capto C6
B-Axis Milling Spindle Horse Power- 24.7 HP
ATC for Milling Spindle-240 ATC
Tool Diameter-2.7"/5.5"
Tool Length 15.7"
Tool Weight 22 lbs
X-Axis X1, X2, X3- 29.5", 7.7"
Z-Axis Travel Z1, Z2, Z3-  61", 60"
Y-Axis Travel Y1, Y2, Y3- +/-8.3"
C-Axis Indexing 1, 2-  .0001, .0001 Degree
W-Axis Travel Sub Spindle- 63"
Rapid Traverse Rates X1, X2, X3- 1968, 1181 IPM
Rapid Traverse Rates Y1, Y2, Y3- 1181 IPM
Rapid Traverse Rates Z1, Z2, Z3- 1968,1181 IPM
Machine Weight 62,250 lbs
Specifications:
Swing Over Bed: 28.7"
Turning Diameter: 28.7"/15.7"
Turning Length: 58.9"
Distance Between Spindles: 73.3"
Chuck Size: 1, 2 12"/12"
Spindle Nose: 1, 2 A2-8, A2-8
Spindle Bore Diameter: 1, 2 4.1", 4.1"
Bar Capacity: 1, 2 3.5", 3.5"
Spindle Speeds: 1, 2 2500, 2500 RPM
Spindle Horsepower: 1, 2 40, 40 HP
B-Axis Head Indexing: .0001 Degree
B-Axis Milling Spindle Speed: 12,000 RPM
B-Axis Milling Spindle Taper: Capto C6
B-Axis Milling Spindle Horsepower: 24.7 HP
ATC for Milling Spindle: 240 ATC
Tool Diameter: 2.7"/5.5"
Tool Length: 15.7"
Tool Weight: 22 lbs
X-Axis: X1, X2, X3- 29.5", 7.7"
Z-Axis Travel: Z1, Z2, Z3- 61", 60"
Y-Axis Travel: Y1, Y2, Y3- +/-8.3"
C-Axis Indexing: 1, 2- .0001, .0001 Degree
W-Axis Travel Sub Spindle: 63"
Rapid Traverse Rates: X1, X2, X3- 1968, 1181 IPM
Rapid Traverse Rates: Y1, Y2, Y3- 1181 IPM
Rapid Traverse Rates: Z1, Z2, Z3- 1968,1181 IPM
Machine Weight: 62,250 lbs

We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers. Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge. Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.

NEW Chip Conveyor
Mori Seiki MSX 711 IV CNC Control
Tool Presetter
High Pressure Coolant System
Renishaw Probe
