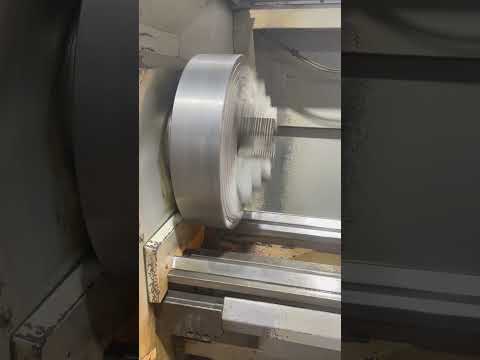

Operational video coming soon. Can be seen under power. This lathe is super clean and comes equipped with a 4 jaw chuck, Dorian toolpost with several holders and Siemens 810D. It has very low hours, (around 2,000) has been well-maintained.
Located at our warehouse in Logan, Utah.
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
Specifications:
Swing 25" 635 mm
Machining Length 118.11" 3,000 mm
Bar Capacity 0" 0 mm
Power 1,624 hp 1,211 kW
Max RPM 2,500 RPM 2,500 RPM
Turning Dia 3.9" 99.06 mm
Tailstock Yes Yes
Control CNC (Siemens 810D) CNC (Siemens 810D)
Dimensions 165” x 90” x 76” 165” x 90” x 76”
Weight 10,760 10,760
Swing over bed: 25"
Swing over cross slide: 14.6"
Control: Siemens 810D
Distance available B.C: 40-157"
Main Drive; Continuous/40% duty: 16/24 hp
Spindle bore, std: 4.1"
Optional spindle bore: N/A
Speed range, std. spindle bore: 2-2500 rpm
Max. load capacity possible: 6,600 lbs
Rapid traverse rate, Z axis: 315 ipm
Tailstock quill dia. 3.9"
Tailstock quill taper: MT 5
Tailstock quill travel: 7.8"
Bed width/ *TRI-V bed ways: *17"
Machine est. weight: 80" bc: 10,760 lb
Max weight in chuck: 1,320 lbs
Max work piece weight B.C.: 4,400 lbs
Cross slide travel, X axis: 15.3"
Feed thrust X/Z axes: 2,000 lbs
Z axis screw dia: 1.6"
X axis ball screw die: 1.26"
Carriage length: 24" bearing on bedways
Width of cross sideways 9"
2 coolant tanks and tooling
120” x 48” x 30”
