Looking for a reliable Engine Lathe? Liberty Machine Works represents this NEW Sharp Machine Tools W2680L model checks all the boxes. . Don't miss out on this opportunity to improve your manufacturing capabilities. Contact us today!

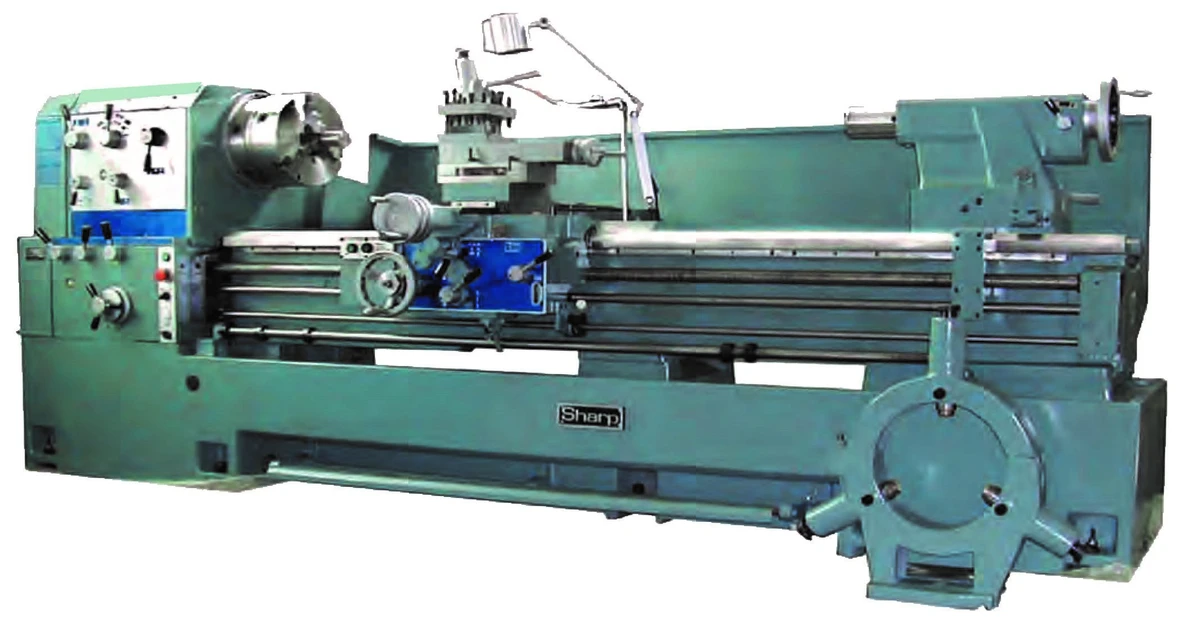

SHARP W-L Series Lathes, W2680L, includes all items noted; also includes electric Z axis rapid travel for carriage
15HP 220V/3PHASE/60HZ electrics
4.72” spindle bore, D1-11 camlock spindle, 16” Wide Bed
• 15HP spindle motor, 12 speeds 15-1500 RPM
• Two-speed MT5 tailstock for heavy or fast drilling
• Full length one piece cast base
• Full length steel rear chip guarding included
• Rear-secured cross slide leadscrew, telescopic
• Four-position indexing automatic longitudinal feed stops
• Certified and individually tested Meehanite cast bed, with pinned removable gap, with induction-hardened bedways. One piece base casting mated to deep bed casting throughout production
• Safety foot brake, failsafe friction with electrical interlock
• Full CSA/UL/ULc-rated industrial electrics in sealed cabinet, with door mounted disconnect
• Multi-position square indexing turret-type toolpost with thrust bearing-equipped quick lever lock
• Quadruple-nut compound rest swivel mount with stamped protractor indication to cross slide
• Oversized Inch/MM markings on cross slide dial, indirect reading to 0.001” off diameter. All INCH leadscrews
• Slideway lubrication in apron, with distribution to cross slide and ways via manual plunger pump. All ways precision ground; all dovetails hand scraped
• Adjustable oil bath cone type overload feed clutch in apron for carriage and cross feed. Externally adjustable.
Included Accessories:
• Fagor 20i digital readout installed, 2 axes, carriage-mounted for 2680
• Halogen work light
• Coolant system
• Motorized rapid traverse for carriage
Included work support:
• Follow rest, bronze tips
• Steady rest with roller bearing tips, with 12” through-hole
Included chucks:
• 12” 3-jaw scroll chuck, Semi-steel body, forged scroll, 2-piece jaws
with bolt-on top jaws and hardened master jaws, D1-11, mounted (AutoStrong Taiwan SC series)
OPTIONS
12” through-hole steady rest, with roller tips $1,984.00
Carriage stop, micrometer type. Clamps to bed. $364.00
16” D1-11 camlock 3-jaw, direct mount, standard nodular cast iron with two sets of jaws Economy $1,477.00
16” D1-11 camlock 3-jaw, direct mount, precision semi-steel with 2-pc Jaws, forged and hardened scroll, American Standard Top jaws, soft jaws available SHARP/Gator $3,241.00
20” D1-11 camlock 4-jaw, direct mount, independent, with T slots SHARP/Gator $3,221.00
25” D1-11 camlock 4-jaw, direct mount, independent, with T slots SHARP/Gator $5,960.00
Live center KIT, 5-piece interchangeable tip set including carbide, 60/82 degree centers and cone tips, triple bearing, with stationary body, MT5 Sharp Taiwan
$385.00
Live center, Sharp dual bearing 5MT $287.00
Headstock spindle internal reducing bushing. MT-7.5 to MT-5, short, precision ground Taiwan $622.00
Suisse/Multifix-type 40-position quick change toolpost with 4 holders, size C :
Multi-faceted prismatic reference surfaces for each holder in any of 40 positions
• 2 turning/facing holders
• 1 boring bar holder
• 1 cylindrical holder with Morse 4 taper bushing (for drill sleeve/chuck, boring bar holders, etc. used with carriage feed) $1,377.00
Additional toolholders for above, turning/facing $182.00
Integral shank drill chuck, MT5, 16mm Capacity keyless with hook wrench operation $564.00
