IDRA OL MG 500 HOT CHAMBER DIE CASTING MACHINE 500 TON
Have one to sell?
ConditionUsed
1 available

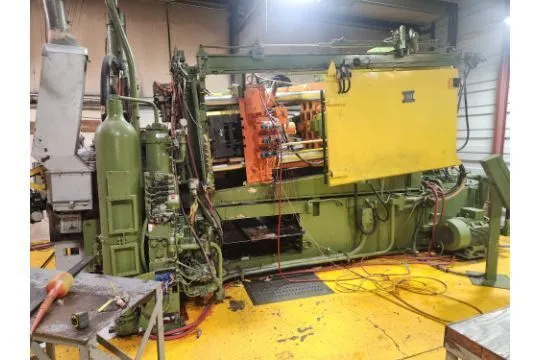

This Hot Chamber Die Casting Machine 500 Ton is manufactured by Idra. The control was updated in 2017.
Located at our warehouse in Preston, Idaho and is ready for inspection and shipping.
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
DIE CLOSE
Locking Force: 500 tons
Distance Between Tie Bars (WxH): 25.6 x 25.6 inch
Tie Bar Diameter: 5.1 inch
Movable Platen (WxH): 41.7 x 41.7 inch
Die Height (Min-Max): 13.8-31.5 inch
Die Stroke: 26.4-0 inch
INJECTION
Die Injection Force (min-Max): 0-22 tons
Shot Weight (aluminum)(Min-Max): 0-19.8 lbs
EJECTION
Ejection Force: 30 tons
Ejection Stroke: 5.9 inch
GENERAL
Machine Weight (54,000 lbs)
Size (LxWxH) 24.6 x 8.5 x 11.5 ft
