2007 VOUMARD CNC 300 GRINDER
Have one to sell?
ConditionUsed
1 available

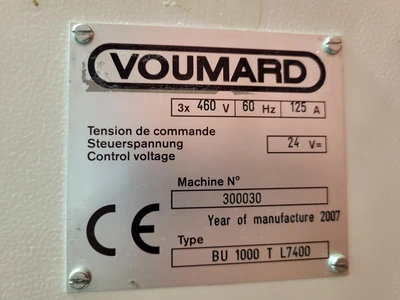

Machine type: BU 1000 T L7400
Was recently removed from power due to routine upgrades and was making good parts with full functionality.
Siemens 840D CNC Control.
Manuals included.
Has grinding capability for:
Internal diameters
External diameters
Front faces
Back faces
Internal tapers
External tapers
Profiles
Drive spigots
Face keyways
Cams
Bilobes and trilobes
Internal threads
External threads
Bearing tracks
Located at our warehouse in Preston, Idaho.
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
Travels
Display .0001degrees or .0001mm
A - 360 degrees - 34 t/min
B - -20/+1 degrees - 240 degree/min
C- 360 degrees - 500 t/min
U- 300mm - 20 m/min
X - 300mm - 20 m/min
Z travel - 1000mm - 20 m/min
4 position turret
Workhead
Through Bore - 50mm
Rotation Speed - 850
Max workpiece weight - 200 daN at 100 mm from flange
Taper - metric 70
Weight - 8000kg
Will do the following Grinding operations
Internal diameters
External diameters
Front faces
Back faces
Internal tapers
External tapers
Profiles
Drive spigots
Face keyways
Cams
Bilobes and trilobes
Internal threads
External threads
Bearing tracks
Dimensions:
MAIN MACHINE
WIDTH x LENGTH x HEIGHT
16'x8'5"x8’
WEIGHT:
17700 lbs
ACCESSORY:
Tank and Pump
4'4"x2'x2’
WEIGHT:
300
ACCESSORY:
Filter unit
9'x4'x9’
WEIGHT:
3000
ACCESSORY:
Chiller / cab cooler
3'2x2'x3’6” / 1’6”x1’x3’6”
WEIGHT:
300
ACCESSORY:
Tank and pump
3’4”x3’x2’
WEIGHT:
400
