TACCHELLA 3 L GRINDER
Have one to sell?
ConditionUsed
1 available

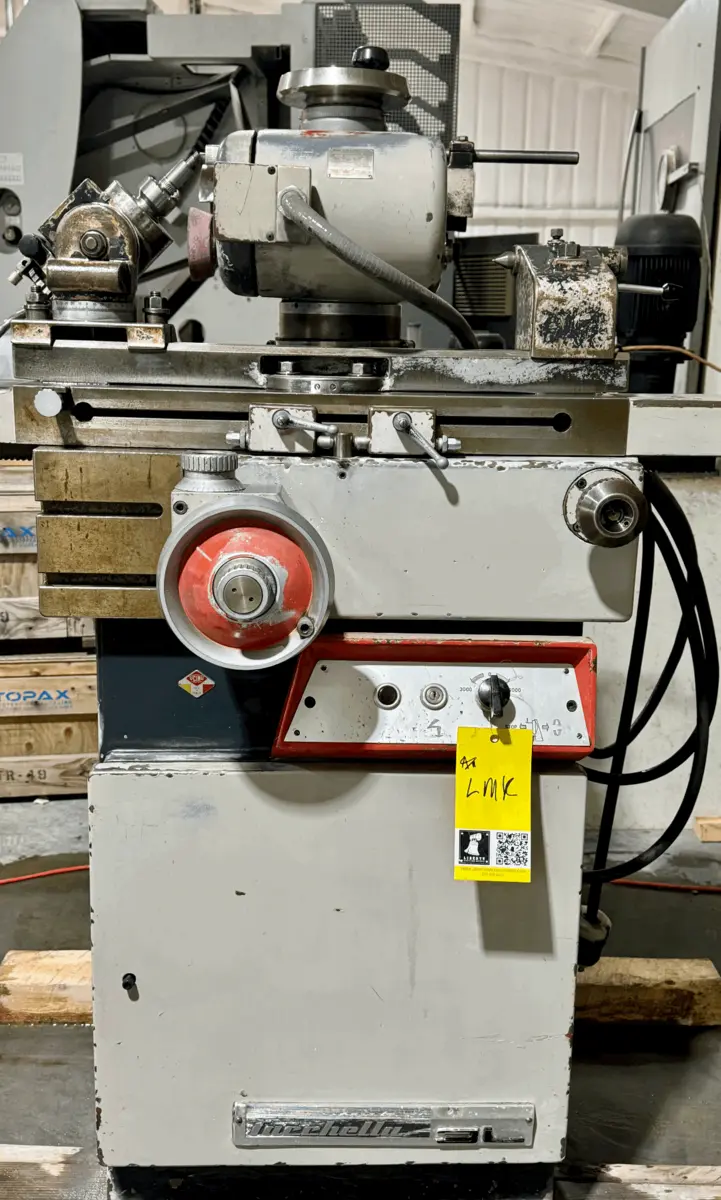

This is a Tacchella 3L tool grinder and it's in great condition. It was removed from a small family job shop where it has been for decades. The previous owner is specializing and needed to make room and raise funds for new equipment. This machine comes with an index head and tailstock as well as a variety of cup style wheels.
Located at our warehouse in Preston, Idaho.
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
Max permissable dia on the centres... 200 mm / 8"
Max permissable distance between tailstocks... 400 mm / 16"
Max permissible distance between workload and tailstock... 335 mm / 13.5"
Max cylindrical length... 240 mm / 9.5"
Length and width of table... 630 x 100 mm / 24" x 4"
Longitudinal travel of table... 300 mm / 12"
Angle of table... 360"
Vertical displacement of wheel head.. 200 mm / 8"
Transversal displacement of wheel head... 150 mm / 6"
Angle of wheel head... 360"
Power on motor of wheel head... 1/1.25 HP
Max dia of wheels... 150 mm / 6"
No. of R.P.M. of wheel head spindle... 3000/6000
No. of R.P.M. of spindle for high speeds... 11,000/22,000
Universal worked with morse taper... 4
No. of R.P.M. of motorized workload... 180/250/325
Power of motor of worked...0, 2 HP
Weight of machine without accessories... 517 kg / 1150 lbs
#1 Main machine 42 x 60T x 48 - 1200lbs
#2 Box of wheels
