Travels
Display .0001degrees or .0001mm
A - 360 degrees - 34 t/min
B - -20/+1 degrees - 240 degree/min
C- 360 degrees - 500 t/min
U- 300mm - 20 m/min
X - 300mm - 20 m/min
Z travel - 1000mm - 20 m/min

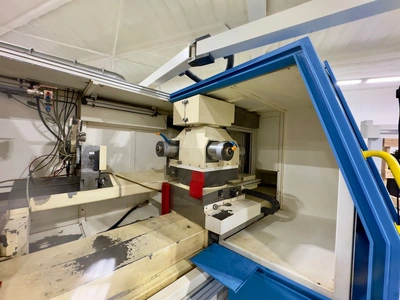

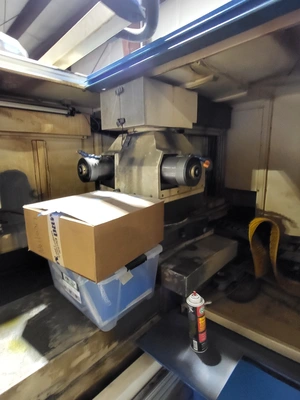

4 position turret
Workhead
Through Bore - 50mm
Rotation Speed - 850
Max workpiece weight - 200 daN at 100 mm from flange
Taper - metric 70
Weight - 8000kg
Will do the following Grinding operations
Internal diameters
External diameters
Front faces
Back faces
Internal tapers
External tapers
Profiles
Drive spigots
Face keyways
Cams
Bilobes and trilobes
Internal threads
External threads
Bearing tracks
Dimensions:

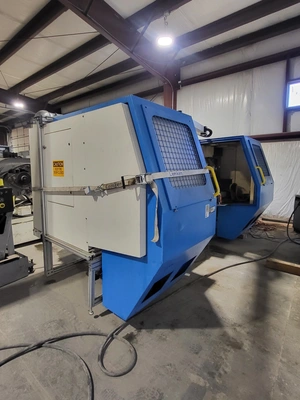

MAIN MACHINE
WIDTH x LENGTH x HEIGHT
16'x8'5"x8’
WEIGHT:
17700 lbs
ACCESSORY:
Tank and Pump
4'4"x2'x2’
WEIGHT:
300
ACCESSORY:
Filter unit
9'x4'x9’
WEIGHT:
3000
ACCESSORY:
Chiller / cab cooler
3'2x2'x3’6” / 1’6”x1’x3’6”
WEIGHT:
300
ACCESSORY:
Tank and pump
3’4”x3’x2’
WEIGHT:
400
This equipment has been sold. Similar equipment available now is shown below.
