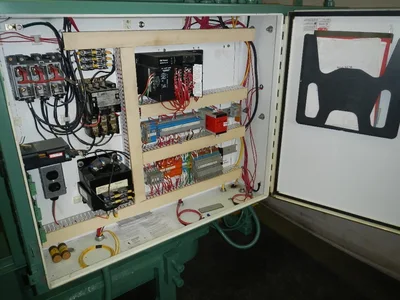

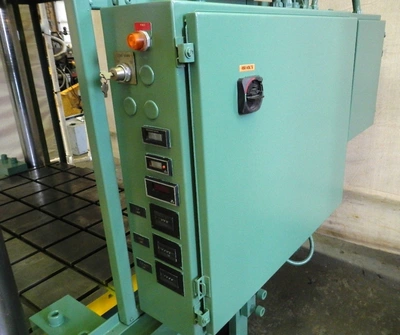

Machine is equipped with sliding bolster, floor standing design, Vickers hydraulics w/ heat exchanger, PLC control, programmable stroke position and

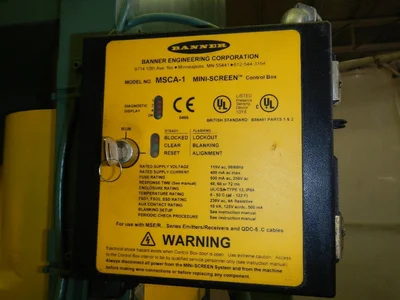

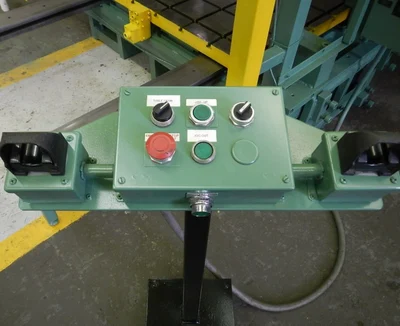

speed change points, remote stand w/ ergo palm buttons, Banner model MSC-1 Miniscreen light curtains, LED ram
position indicator, cycle timer

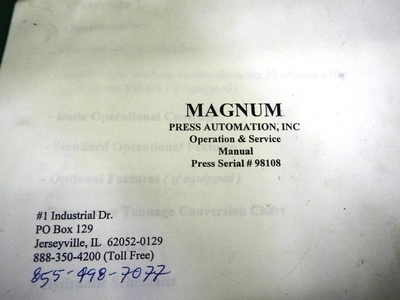

control, locking safety interlocks on ram, pressure gage, bolster & ram t-slots on 8" centers LR & FB, full manuals, schematics & ladder logic for PLC.
Located at our warehouse in Preston, Idaho.
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.

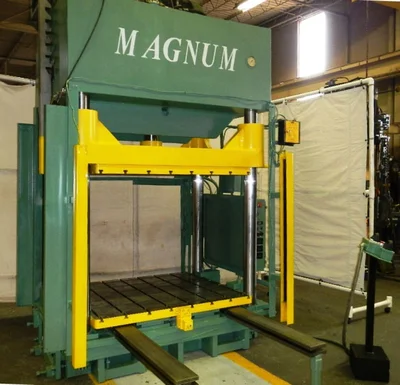

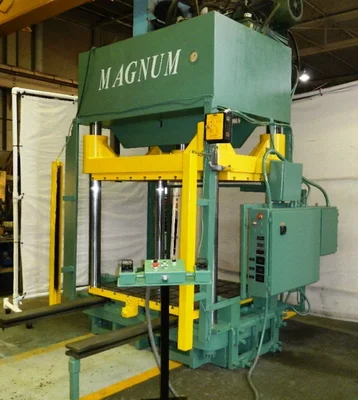

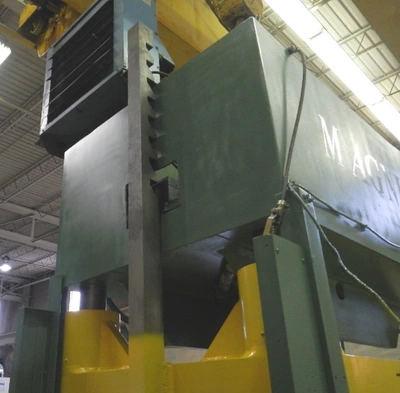

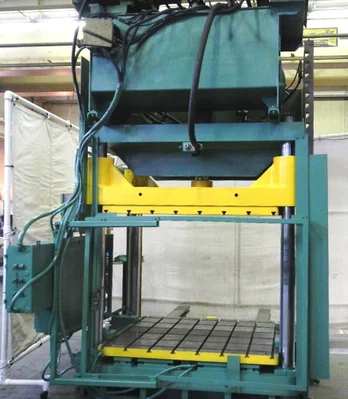

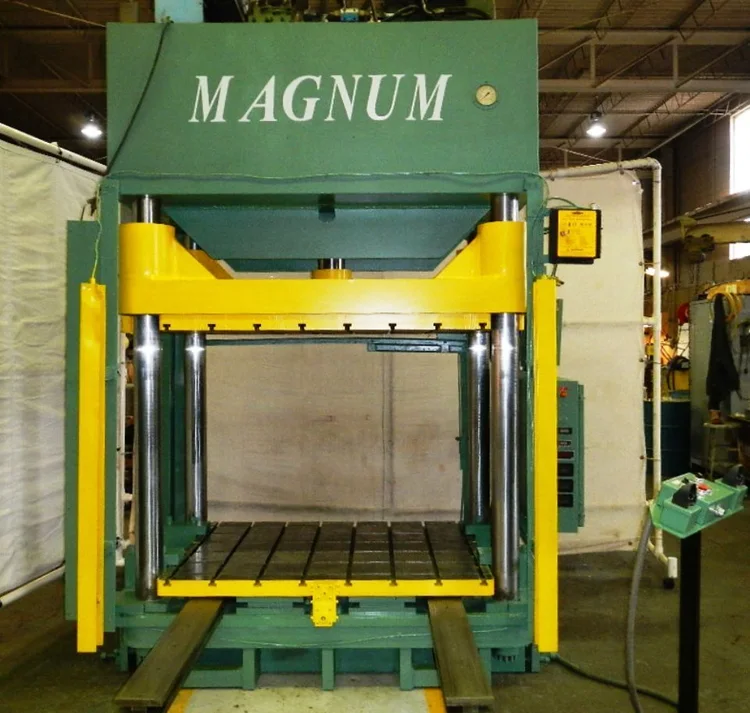

MAGNUM 60 TON HYDRAULIC SPOTTING PRESS*
Year 1998
Capacity 62.8 Tons
Bed area 60" LR x 48" FB overall
Distance between posts 60 1/2" LR x 33" FB

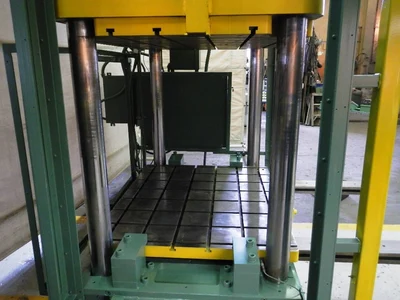

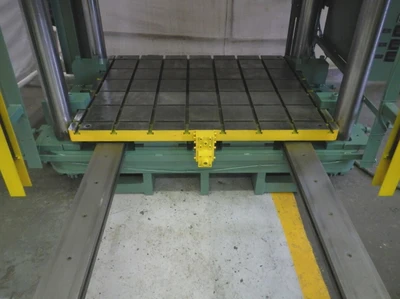

Bolster (sliding) 60" x 48" x 3" thick (T-slotted)
Ram area 60" LR x 48" FB (T-slotted)
Stroke 30"
Daylight 48" open
18" closed
Ram speeds 625 IPM advance
100 ipm pressing
560 ipm return
Floor to bed 20 1/2"
Post diameter 5"
Hydraulic reservoir 120 gallons
Cylinder bore 8"
Rod diameter 5.5"
Operating pressure 2,500 PSI
Motor 30 HP
Dimensions 94" x 12
