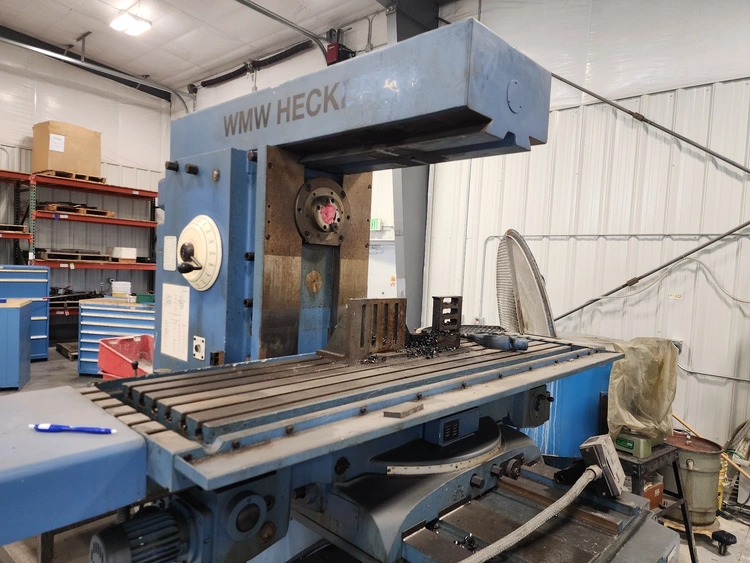

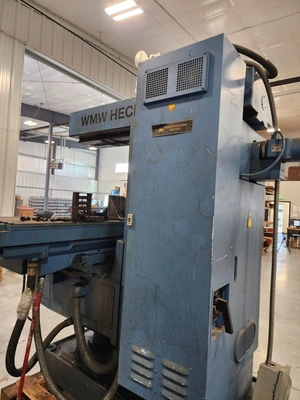

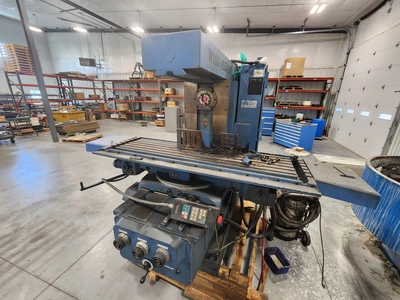

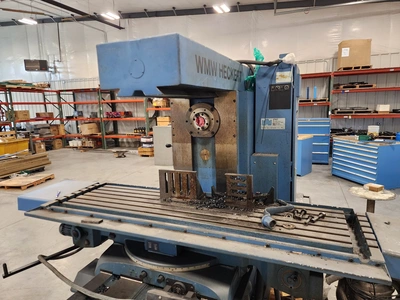

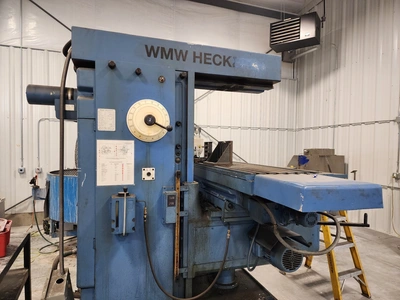

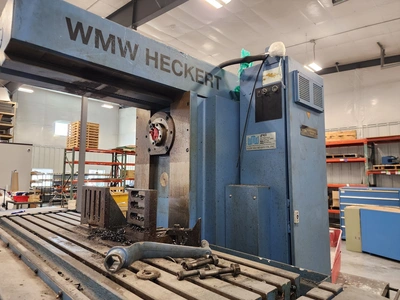

WMW HECKERT FU450X1800 VERTICAL MILL
Have one to sell?
ConditionUsed
1 available
This mill is in great shape! Isn't being used anymore, so looking for a new home.
Located in Spanish Fork, Utah.
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.

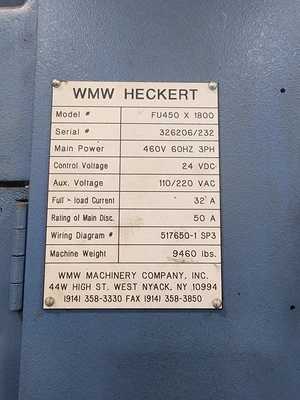

SERIAL .......................... 326203/233
MODEL ........................... FU450X1800
AREA OF TABLE ................... 72" X 21"
TABLE SWIVELS ................... 45 DEGREES EACH WAY
HORIZONTAL SPINDLE SPEEDS ....... (18) 45 TO 2240 RPM
FEED RANGE, LONG AND CROSS ...... (18) .63-31.5 IPM
FEED RANGE, VERTICAL ............ (18) .20-10 IPM
LONGITUDINAL TRAVEL ............. 52"
CROSS TRAVEL .................... 14"
VERTICAL TRAVEL ................. 24-3/4"
SPINDLE TAPER, HORIZ/VERT ....... 50 NS
VERTICAL SPINDLE TO TABLE ....... 31-1/2" MAX, 6-5/8" MIN
HORIZONTAL SPINDLE TO TABLE ..... 25-3/8" MAX, 5/8" MIN
VERTICAL SPINDLE TO COLUMN WAYS.. 48" MAX, 14" MIN

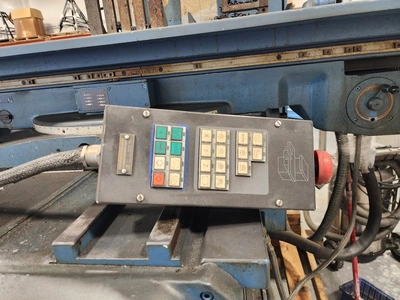

PLC ............................. SIEMENS
RAPID TRAVEL .................... YES
POWER DRAWBAR ................... YES
DIGITAL READOUTS ................ 3 AXIS
COOLANT ......................... YES
MOTOR HORSEPOWER, HORIZONTAL .... 20 HP
