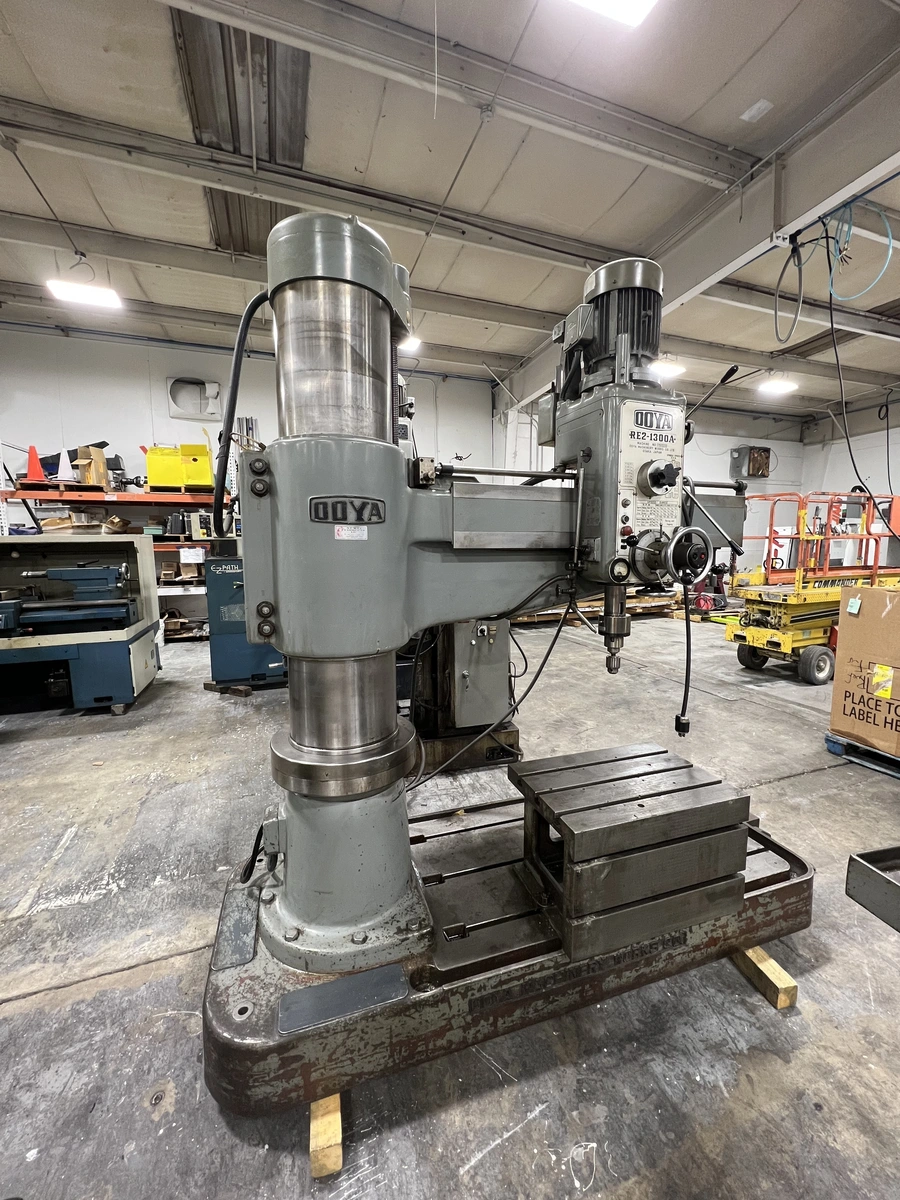

This drill is in super good condition. It is currently under power, and ready to be shipped.
Diameter of column
12-5/8"
Column surface to spindle center, max.
49-3/8"
Column surface to spindle center, min.
11-5/8"
Spindle speeds (24)
32 to 1985 RPM
Feeds (6)
.003 to .039
Spindle taper
MT #5
Diameter of spindle
2-3/8"
Diameter of quill
3-1/16"
Vertical travel of spindle
11-13/16"
Horizontal travel of spindle head
37-3/4"
Vertical travel of arm
25-5/8"
Base to spindle, maximum
51-3/4"
Base to spindle, minimum
13"
Drilling capacity, steel
2-1/4"
Drilling capacity, cast
2-5/8"
Motor
5 HP / 1730 RPM
Volts
220 / 440
Phase
3
Hz
60
Amps
13.4 / 6.7
Approximate dimensions
75" x 35" x 85" high
Approximate weight
6,100 lbs.
To the best of our knowledge all details listed below are deemed correct. It is the buyers responsibility to confirm ALL details prior to purchase.
