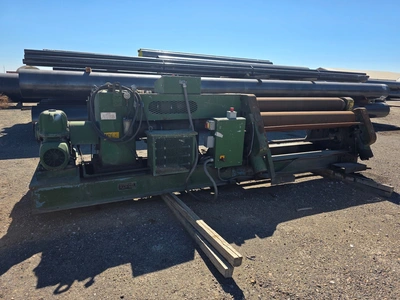

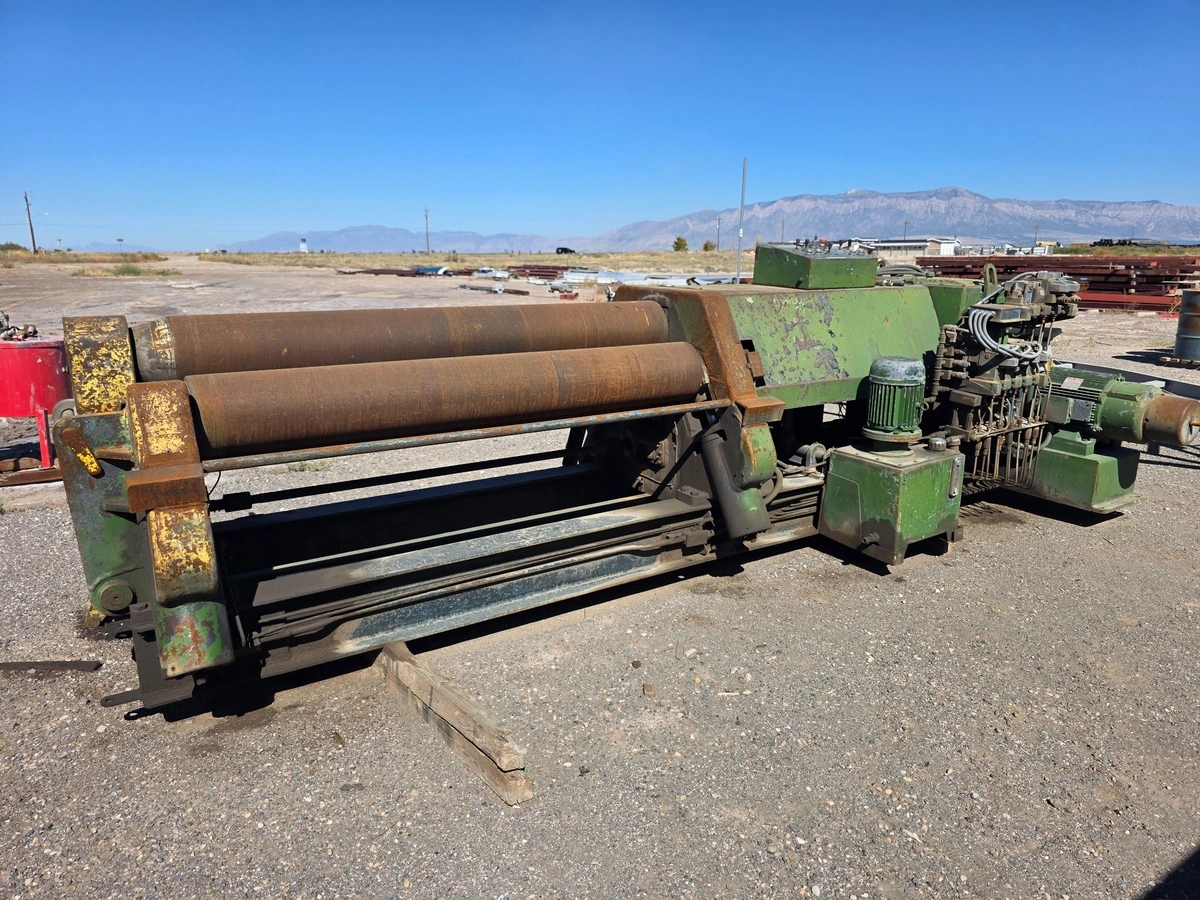

STE-CO HIP2-4 6'x1/2" Plate Roll
Have one to sell?
ConditionUsed
1 available
Located at our warehouse in Preston, Idaho.
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
Model: HIP2-4
Capacity: 6 feet wide x 1/2 inches thick mild steel
Roll Length: 78 inches
Roll Diameter: 10 inches
Pass Line Height: 34 inches
Roll Adjustment: Power rear roll adjustment with manual bottom roll adjustment
Motor Specifications:
Rear roll adjustment motor: 5 HP
Main motor: 10 HP, 960 RPM, 440V, 3-phase, 50 Hz
Controls:
Pushbuttons for start/stop
Drum switch for forward/off/reverse
Full-length emergency stop treadle
Manual Features:
Manual drop end with hand lever to raise top roll
Dimensions:
Overall length: Approximately 149 inches
Width: Approximately 50 inches
Height: Approximately 46 inches
Weight: Approximately 11,000 lbs
