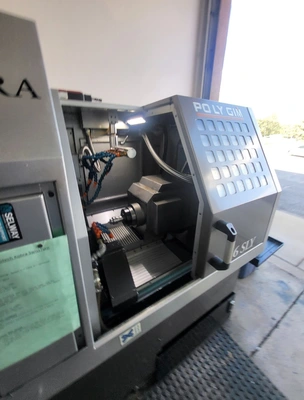

2017 POLYGIM KOBRA 16SLY SWISS CNC LATHE

Have one to sell?
208-851-8568
libertymachineinfo@gmail.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Swiss Type Automatic Screw Machines
Manufacturer:
POLYGIM KOBRA
Model:
16SLY
Year:
2017
Stock #:
LPT
Status:
For Sale
Serial #:
3581611
Country:
United States

Description

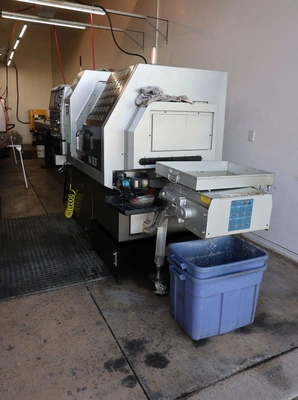

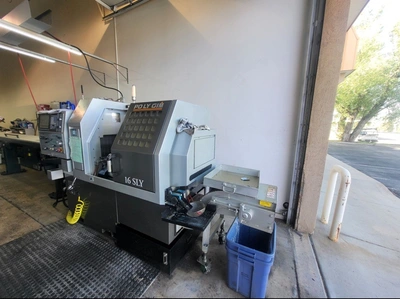

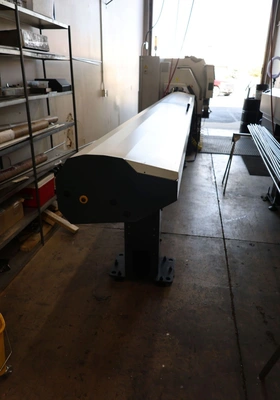

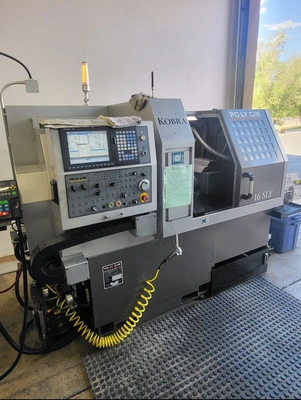

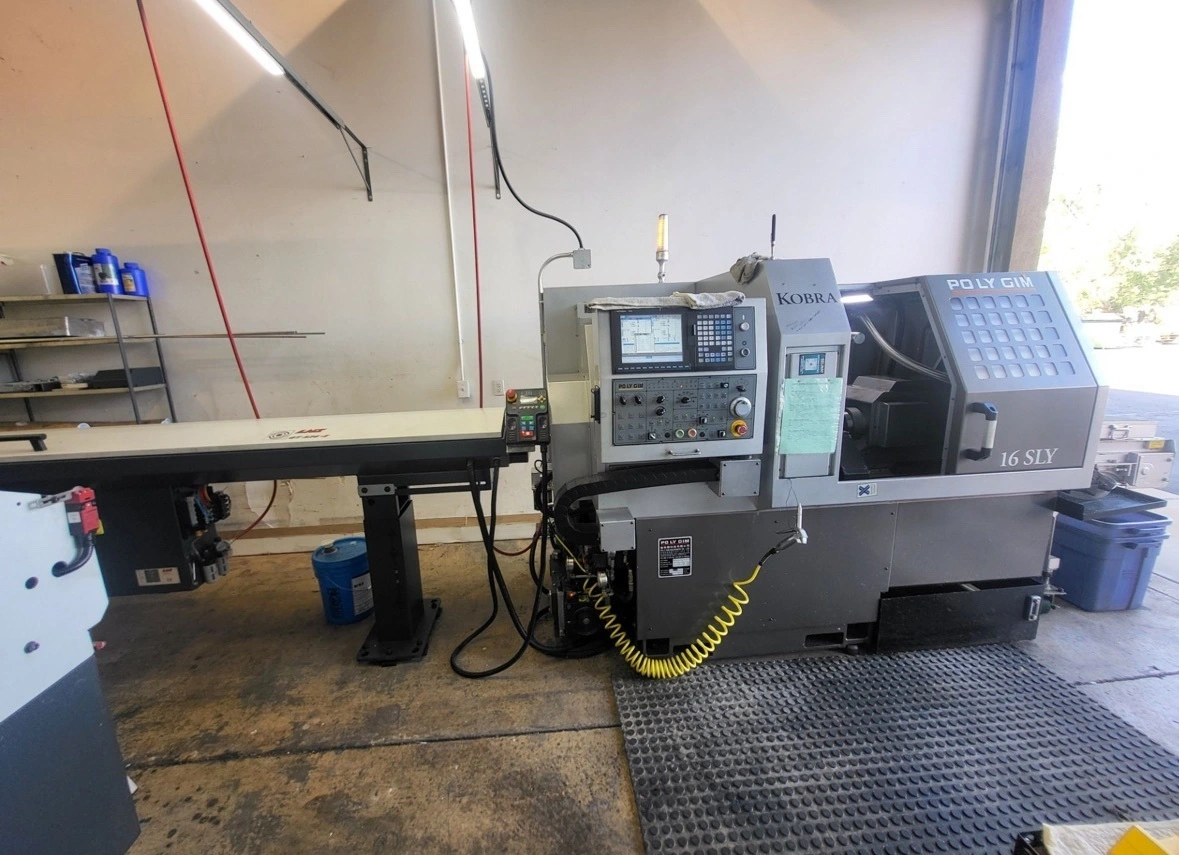

2017 Polygim Kobra 16SLY Swiss CNC Lathe Screw Machine with chip conveyor and LNS bar loader.

Located at our warehouse in Preston, Idaho.

We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.

CAPACITY 0.685
POWER 3 HP
RPM 8,000 RPM
# AXIS 7
SWISS, CHUCKER OR CONVERTIBLE? Convertible
MAIN SPINDLE INDEXING Full C
SUB SPINDLE INDEXING Full C
LIVE BACK WORKING TOOLS? Yes
CONTROL CNC Mitsubishi M70
DIMENSIONS 121" x 58" x 81"
WEIGHT 4,600 LBS
CNC CONTROL MITSUBISHI M70
MAIN SPINDLE DIAMETER: 0.67" (17MM)
MAIN SPINDLE SPEED: 200-8,000 RPM
MAIN SPINDLE INDEXING ANGLE: 0.001 DEG.
Main SPINDLE MOTOR: 3 HP/220v/3/15 AMP
SUB/BACK SPINDLE DIAMETER: .67 (17MM)
SUB/BACK SPINDLE SPEED: 200-5,000 RPM
SUB SPINDLE INDEXING: 0.001 DEG.
MAX. LENGTH FOR FRONT EJECTION: 8.86” (225mm)
SUB/BACK SPINDLE MOTOR: 3 HP
MAX. MACHINING LENGTH per chucking: 200mm (7.87") or 80mm
with rotary/live Bushing
MAX. DRILLING DIAMETER MAIN SPINDLE: 12mm (0.393")
MAX. DRILLING DIAMETER SUB SPINDLE: 0.275"
MAX. TAPPING DIAMETER MAIN SPINDLE: M10
MAX. TAPPING DIAMETER SUB SPINDLE: M6

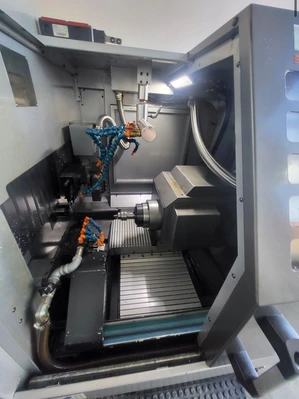

Tooling-
O.D. TOOLS: 6 (12 x 12 x 120 mm)
I.D. TOOLS: 4 (ER16)
CROSS WORKING DRIVEN TOOLING: 6 (ER16)
CROSS WORKING DRIVEN TOOLING SPEED: 200-6,000 RPM
FRONT WORKING DRIVEN TOOLING: 3 (ER-16)
FRONT WORKING DRIVEN TOOLING SPEED: 200-6,000 RPM
BACK WORKING ID TOOLING: 4 Live or 4 Static
BACK WORKING DRIVEN TOOLING-
No. of tools (slide 1): 3 (ER11)
No. of tools (post 1): 4 (ER16)
BACK WORKING DRIVEN TOOLING: 200-6,000 RPM

We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers. Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge. Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
