2017 KSI TCM-20S SWISS CNC LATHE
Have one to sell?
ConditionUsed
1 available

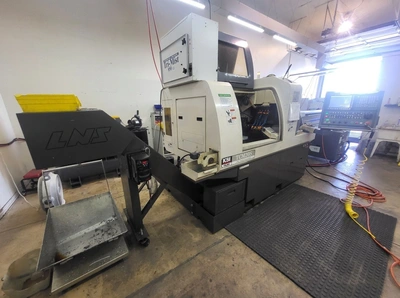

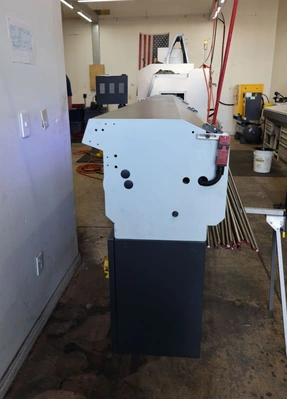

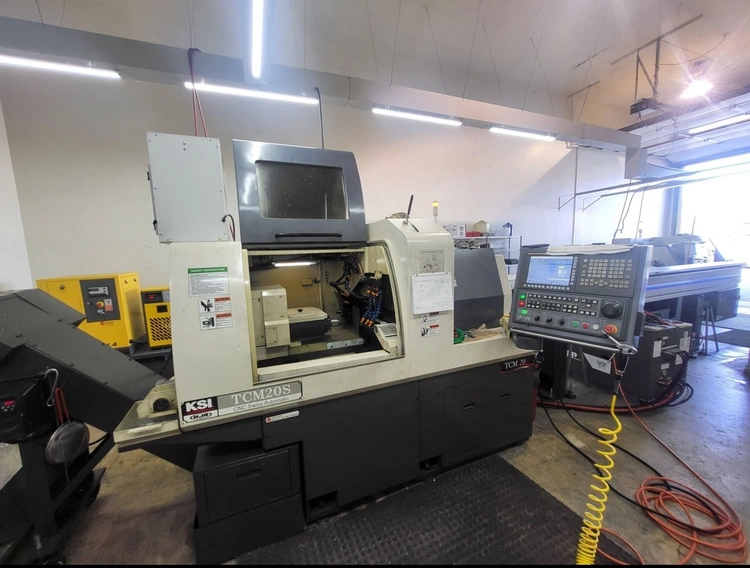

2017 KSI TCM-20S Swiss CNC Lathe Screw Machine with BLoader bar loader and LNS chip conveyor.
Located at our warehouse in Preston, Idaho.
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
Bar Diameter: 3/4"
Chucking Diameter in Sub: 3/4"
Tool Layout
OD: 6
Front: 5
Back End: 4 (ER 16 / 2 Fixed, 2 Live)
Sub Tool: 3 (1 Fixed, 2 Live)
Main Drill/Tap
Drilling: 3/8"
Tapping: M8
Cross
Drilling: 0.31" (ER16)
Tapping: M6 (ER16)
Slotting: Width 0.059" x 1/8"
Back End
Drilling (Fixed): 3/8" (ER16)
Drilling (Live): 0.31" (ER16)
Tapping (Fixed): M8 (ER16)
Tapping (Live): M6 (ER16)
Main Spindle
Spindle Speed: 10,000 RPM
Spindle Motor: 2.9 HP
Sub Spindle
Spindle Speed: 8,000 RPM
Spindle Motor: 2 HP
Tool Speed (Cross & Back End): 5,000 RPM
Tool Motor: 1.34 HP
Machine Weight: 7,716 LBS
