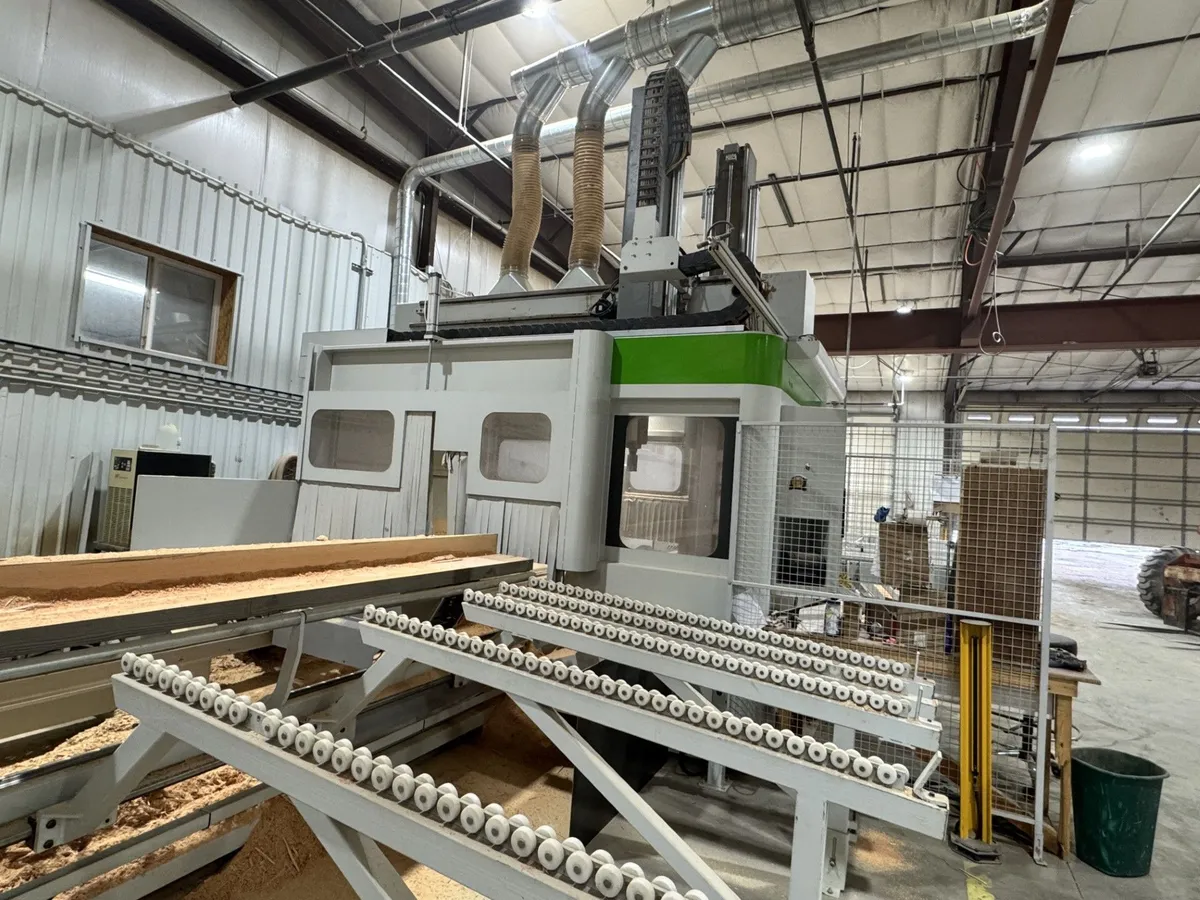

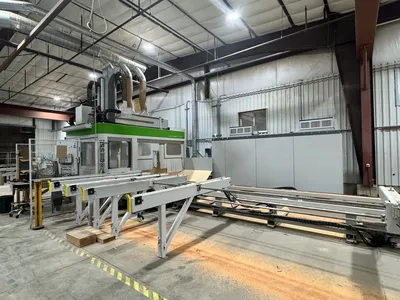

BIESSE UNITEAM CK 14C 5-AXIS CNC WOOD MILL
Have one to sell?
ConditionUsed
1 available
Portal Structure
o 2 working units
o 5-axis milling unit – 17kW
o Dedicated blade group, 735 mm diameter w/ 5-axis control
· Main milling unit
o Tool magazine w/ 12 positions
o Can hold a 640 mm diameter blade and chain-type aggregate
· Feeding System
o Independent Clamps (Vertical and Horizontal)
o 4 carriages (w vertical and horizontal hydraulic blocking systems)
o Processing of all 6 sides without turning the workpiece by the 90 degree hydraulic rotation system of the clamps
· Numeric Control: Osai Open M
· Cad/Cam – Software
· Working Field
o X-axis: 500-14000mm
o Y-axis: 50-600/1000mm
o Z-axis: 50-600mm
· Saw will do bevel or compound cuts
· Has ability to cut a wide range of angles
· Operating system: Windows/Uniteam/Osai
· Scrap conveyor
o Chain 240v
o Infeed conveyor: Rubber belt/Raised steel
o Outfeed conveyor: Rubber belt 55’ past machine
· The saw is currently under power
· Saw electrical requirements
o 3 208V 400A to a 150 kva transformer step up to 400V
· Computer requirements
o Ethernet cable
o 1” air line
o Dust collector for fire/dust
· Manuals & Schematics included
o Electrical schematics
o Use and maintenance manual
o Calibration tool manual
o Process video manual
· Required repairs
o None that we are currently aware of.
· List of spare parts included
o Belts for loading conveyor
o Belts for carriages
o Misc Air fittings
o Hydraulic rams for claps on carriages
o Coils for hydraulic valves
o Collets for different size tools in spindles
o Tooling (blades, end mills, pens)
o Vacuum tables for carriages x4
o Vacuum pump
o Hydraulic unit
· Hydraulic unit, vacuum pump unit and computer system are all powered from the main unit.

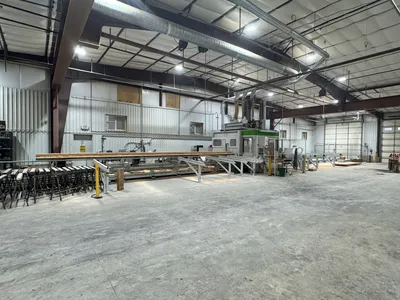

· The whole unit is roughly 112’ long with the infeed around 48’, Cab is approximately 9’, Outfeed is 45’ & scrap conveyor runs another 10’.
Located in Preston, Idaho.
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
