2024 MAZAK QT-EZ 10MSY CNC LATHE Y-AXIS LIVE TOOLING, SUB SPINDLE TURNING BAR FEEDER

Description

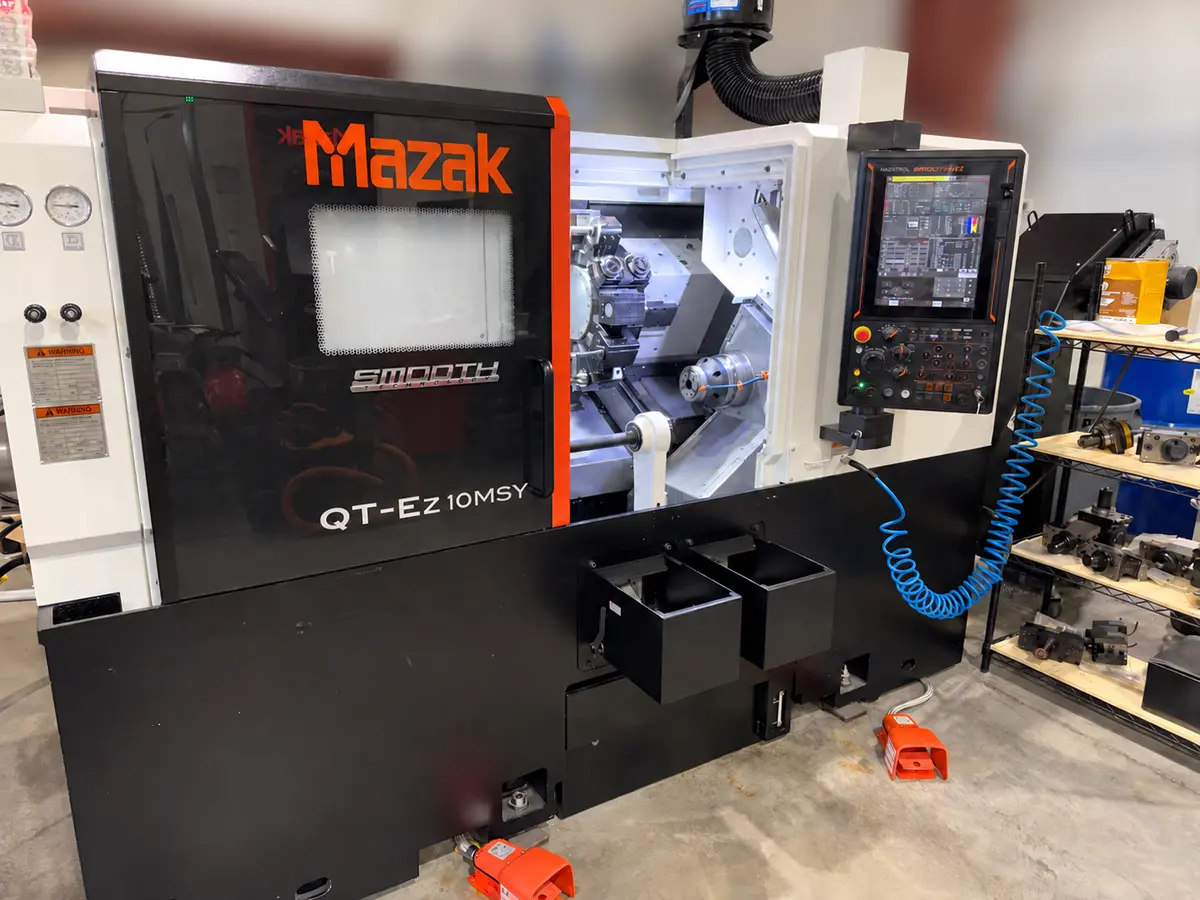

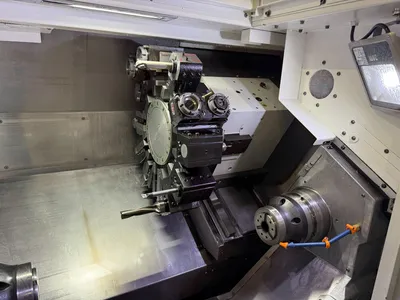

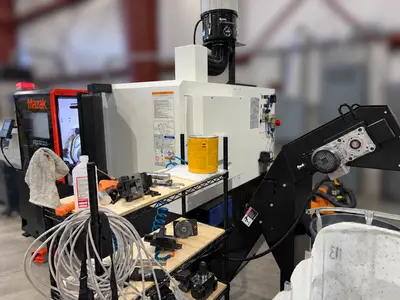

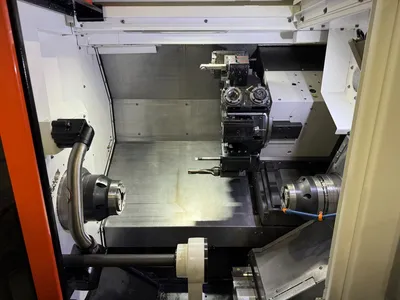

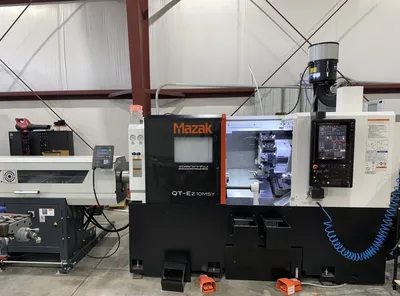

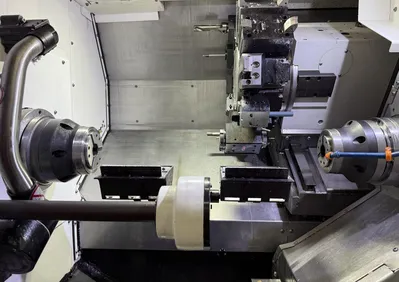

This is a late-2024 Mazak QT-Ez 10MSY CNC lathe with only 637 cutting hours. It is a very clean,
well-maintained machine equipped with Y-axis, live tooling and a second/sub spindle, so it can
handle turning, milling, drilling and tapping in one setup. It has a Mazatrol SmoothEz control, 10-
inch main chuck, 6-inch sub-spindle chuck and 12-position turret. This is a very nice machine, and
it holds great tolerance. Set up very well with lots of useful options. It is currently installed, under
power and operating properly. It is available immediately.
Located in Logan Utah

• 118 PSI high-pressure coolant system with 16 GPM flow

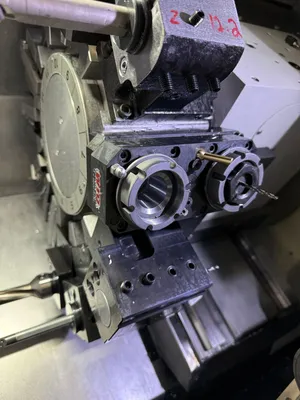

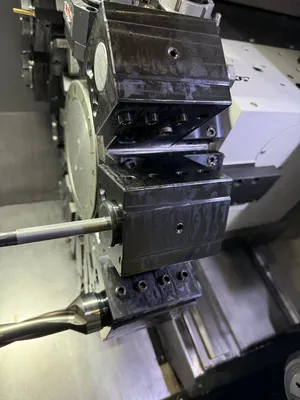

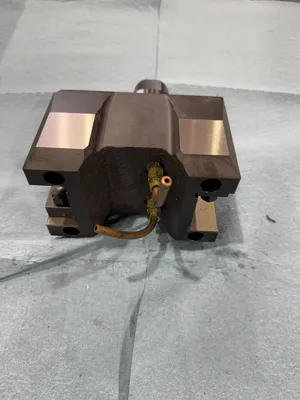

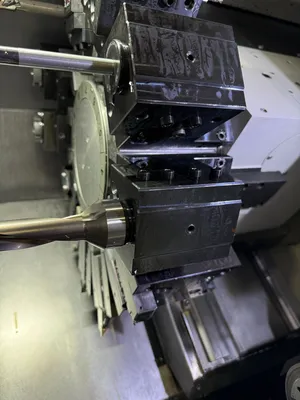

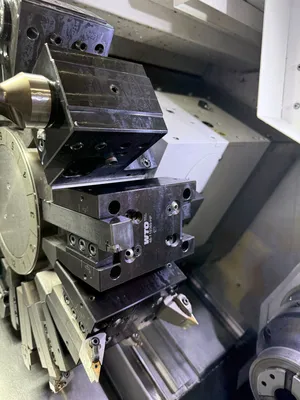

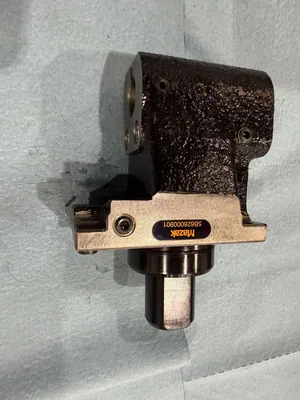

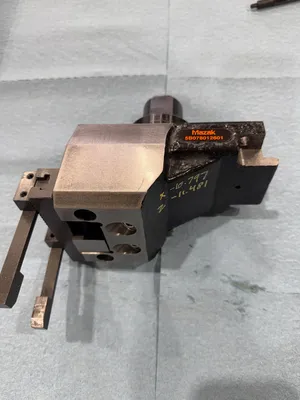

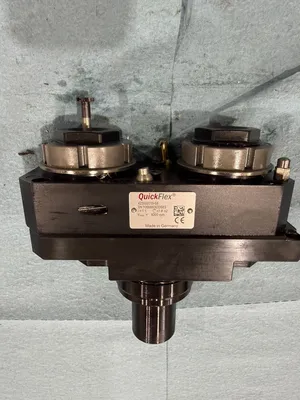

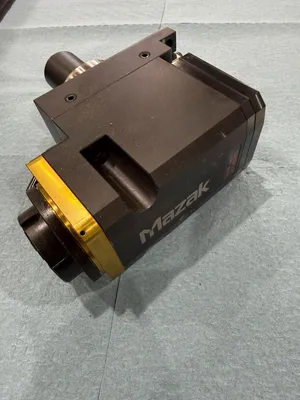

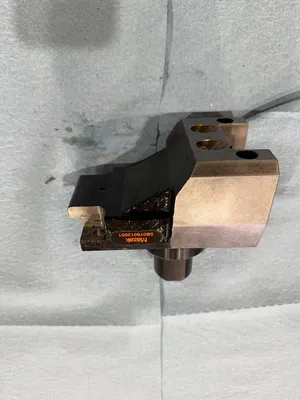

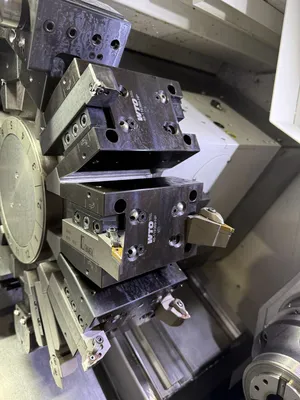

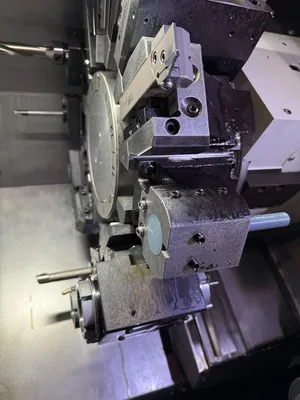

• Lots of Live and Static Tooling

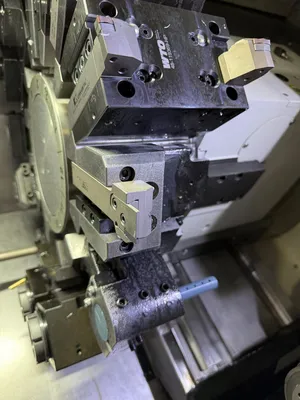

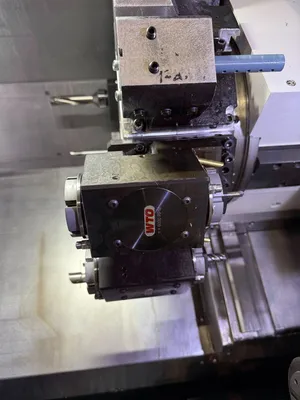

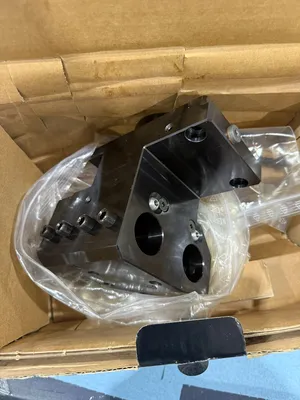

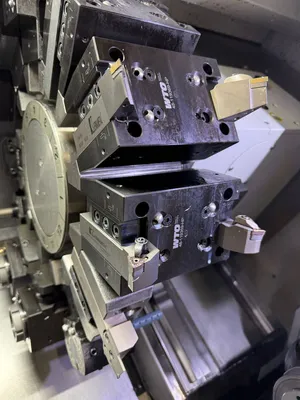

All are Mazak Or WTO tooling. Most are listed in pictures to the limit of pictures allowed on the ad.

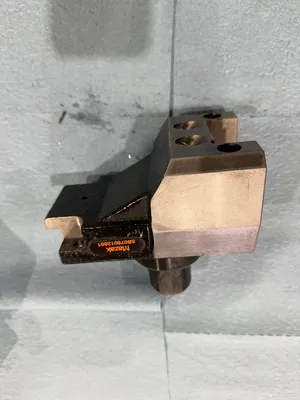

Static OD turning Single QTY 4
Static Od Turning Double side QTY 4
Static Boring Bar Holder Single QTY 3
Static Boring Bar Holder Double Side QTY 3

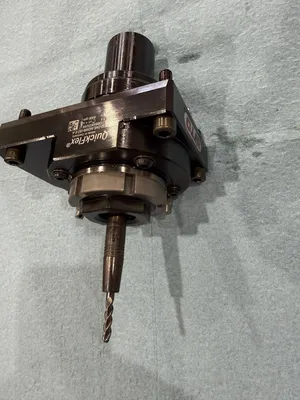

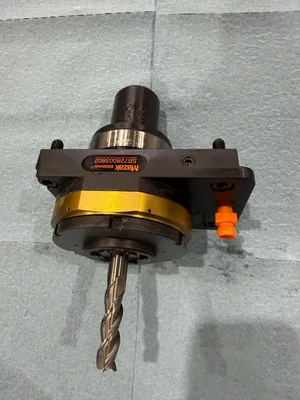

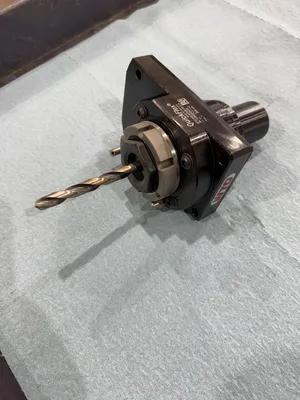

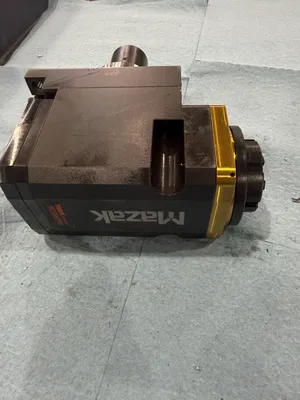

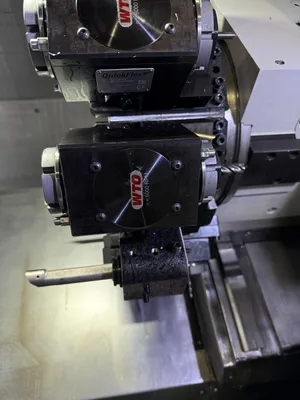

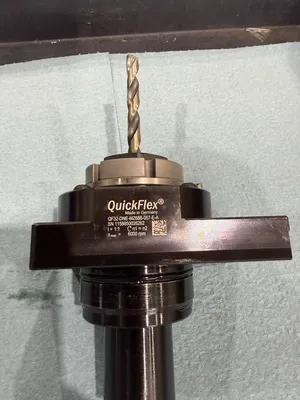

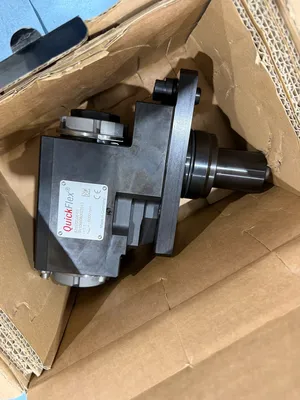

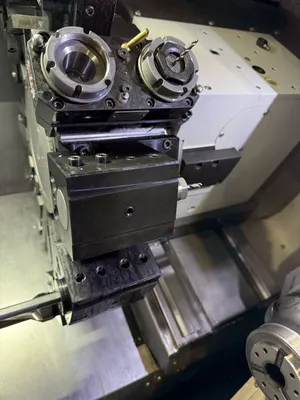

Axial live-tool holder 90-degree Main Spindle QTY 2
Axial live-tool holder 90-degree Main and Sub Spindle QTY 3
Radial live-tool holder straight Main Spindle QTY 3
Radial live-tool holder straight Main and Sub Spindle QTY 2
Static Boring Bar Holder Top and Bottom QTY 1
Plug QTY 4

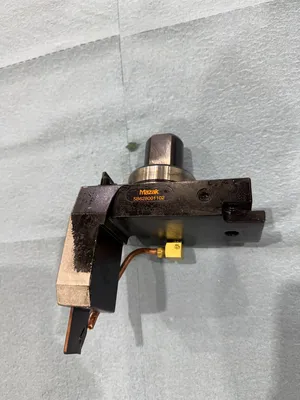

Groove / Cutoff Holder QTY 1

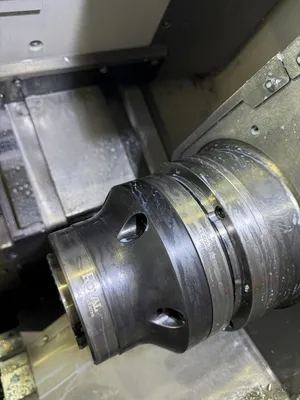

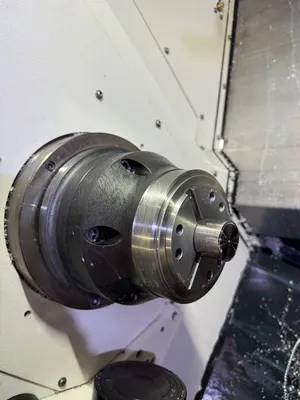

• Royal QG-65 Accu-Length quick-change collet chuck
• Royal QG-65 Accu-Length quick-change collet chuck Collet Removal Tool

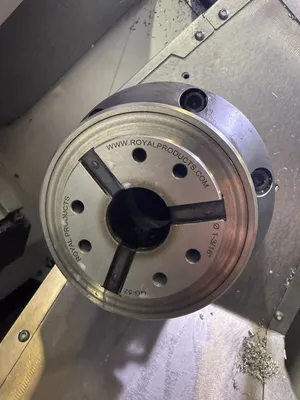

• Royal QG-52 Accu-Length quick-change collet chuck
• Royal QG-52 Accu-Length quick-change collet chuck Collet Removal Tool

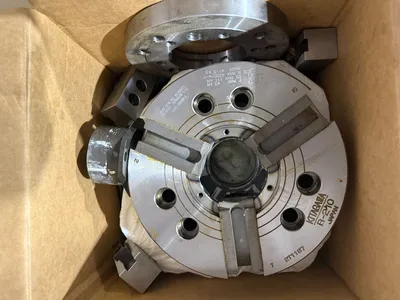

• Standard 10 Inch Kitagawa 3 Jaw Chuck

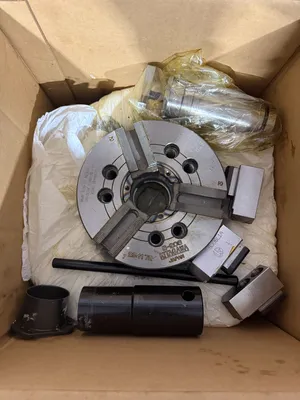

• Standard 6 Inch Kitagawa 3 Jaw Chuck

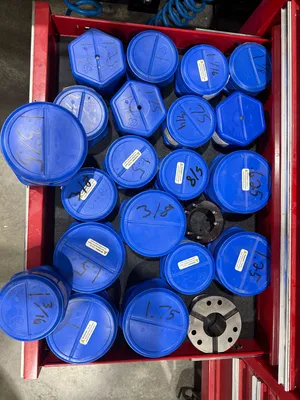

• Entire Drawer of QG-65,52 Quick Change Collets, as show in pictures there are many Sizes
• Automatic parts catcher
• Extra parts-catcher bucket

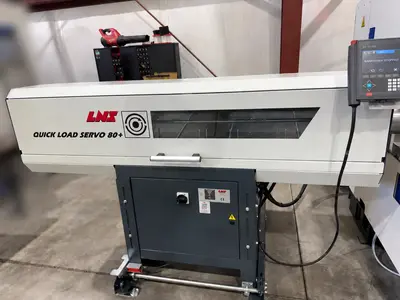

• LNS Quick Load Servo 80+ bar feeder
• Factory-supplied side-discharge hinged chip conveyor

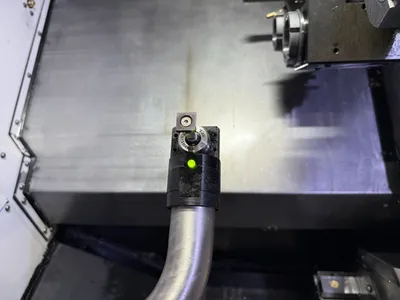

• Automatic tool eye for tool setting
• Additional LED work light

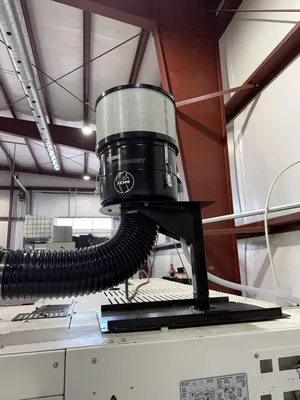

• Mist-collector Royal FX 300 with After Filter Option
• Expanded 8 MB program memory
• Automatic power-off function
• Operation-complete buzzer
• Three-color signal tower

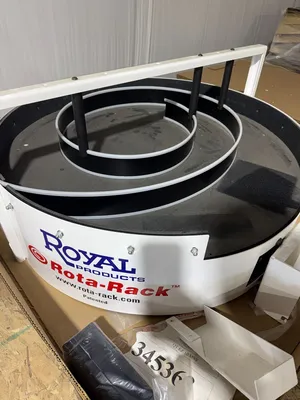

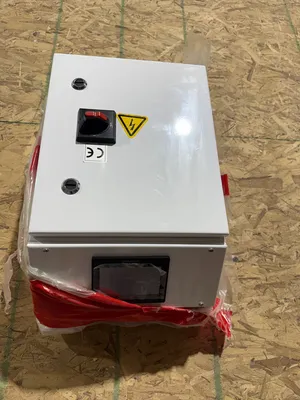

• Heavy Duty Royal Rotorack with Deluxe Control
This rotorack and attached conveyor goes under the automatic parts catcher boxes and the
pictured conveyor would take the part and stock drops to the rotorack. This was of course,
set up for all night production but I never got around to putting it together. The rotorack and

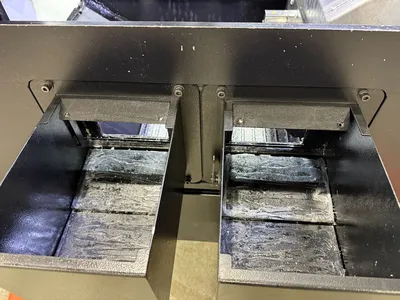

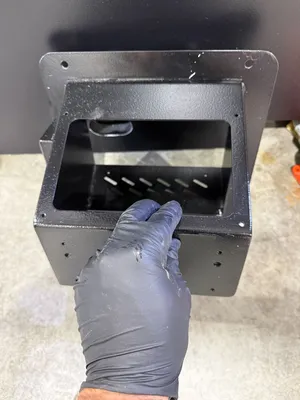

conveyor are brand new and never used or installed. Also, in one of the pictures there is a
black box and that replaces the standard factory supplied parts catcher bucket. This one is
built for this setup so when you go to use the rotorack you can change out those buckets
and the parts are angled down onto the conveyor. I have the entire kit for this change out
which includes two of these black boxes for both sides. There isn’t much to it.

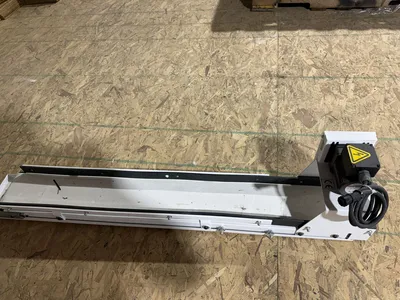

• Heavy Duty Rotorack Conveyor (In the picture it looks bent but it is not its in perfect
condition)

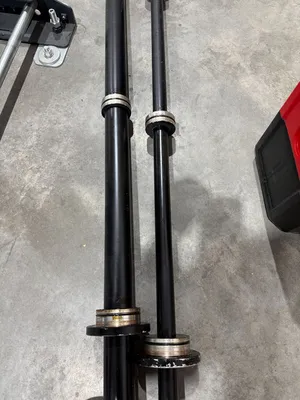

• Spindle Liners - JL Berns steel Liners Sizes 2.5, 1, 1.375, 1.75
• Extended Length Bar capacity to 48 Inch Bars
• All Manuals

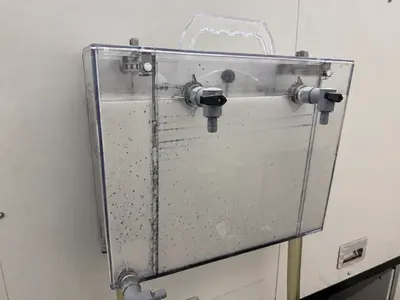

• NexJen Oil Skimmer As Shown in Pictures

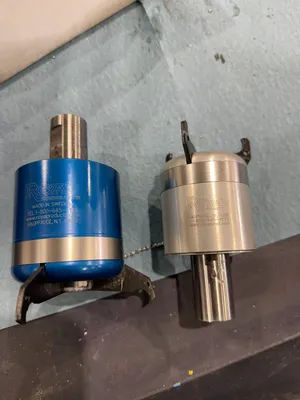

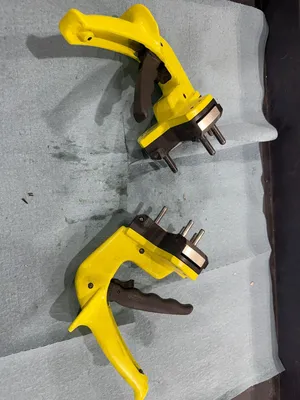

• Royal 3 finger Gripper. I used these to pull longer parts out of the sub and put into parts
catcher
• QG-52 Collet part ejector

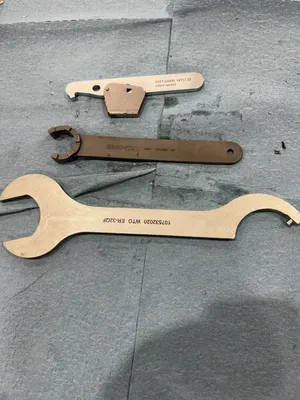

• Necessary wrenches for live tooling
